Pedestrian Drum Handlers
Grab-O-Matic Model: SC22 Drum Rotator

Product information
Grab-O-Matic Model: SC22 Drum Rotator – Manual pedestrian drum carrier for the lifting and rotating of drums to dispense their contents. Fitted with a quick release removable drum rotation attachment for all steel drums, plastic ‘L’ ring drums and fibre drums. (Note: Plastic and fibre drums when fitted with a safety adaptor.)
The straddle type legs allow the unit to straddle the drum, move around a workshop and raise to dispense the contents. The drum rotation attachment (model QR-SC10), secures the drums in a steel clamping hoop with an adjustable over centre clamping chain and locking pin, rotation is via a hand operated gearbox that gives full control throughout the rotation process.
The unit is available in various lift heights and a power lift and power drive version if required.
Standard Features
– Manual hydraulic lift & manual push
– Fixed straddle widths from 700mm-1350mm
– Transparent and impact resistant safety screen on the mast
– Ergonomic handle for relaxed operating position
– Low overall height for optimum view
– Strong construction ensures a long operating life and low maintenance costs
– 50:1 ratio gearbox for full control during rotation
– Full 360 degree rotation of the drum
Technical Specification
– Overall Height: 1350mm
– Overall Width: Various depending on straddle width chosen
– Dispense Height: 1200mm on standard 1650 model with duplex mast
– SWL: 500kg
Optional Extras
– Increased lift heights
– Power lift and drive versions available
– Interchangeable attachments
– Safety adaptor for use with plastic and fibre drums
– Webbing strap and ratchet clamping system
All fork attachments are CE marked issued with Test Certificates, Certificates of Conformity and manufactured entirely in the UK to ISO 9001:2008.

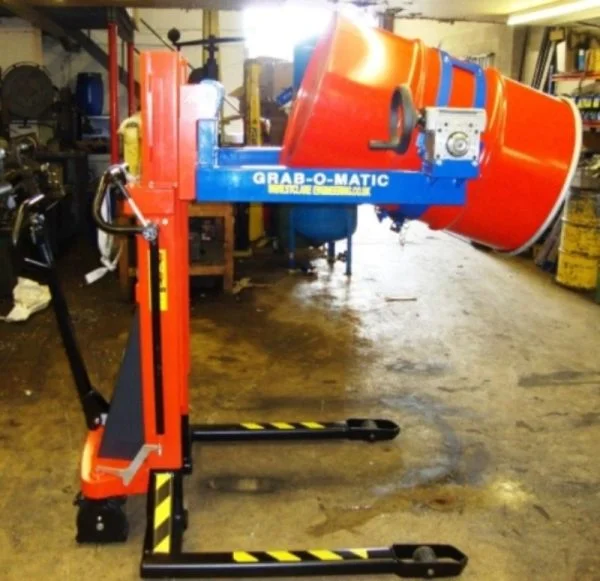

SC22- Manual
Manual lift push pedestrian drum rotator

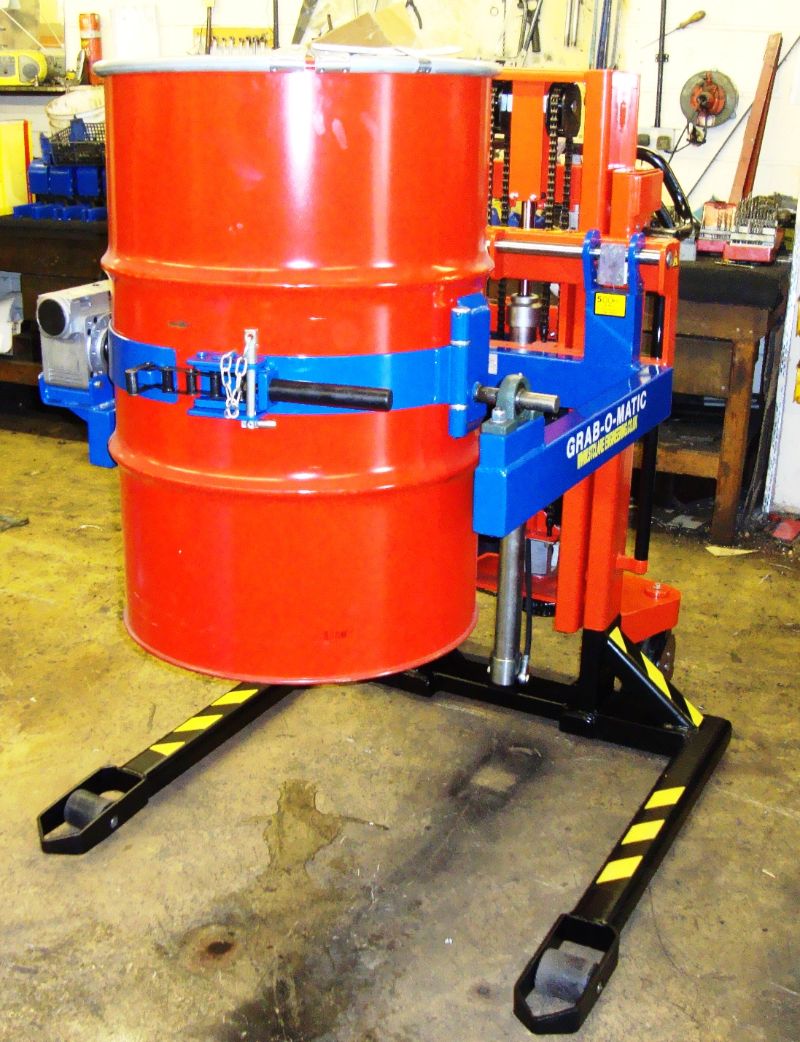

SC22 Front
Adjustable overcentre chain and clamping system

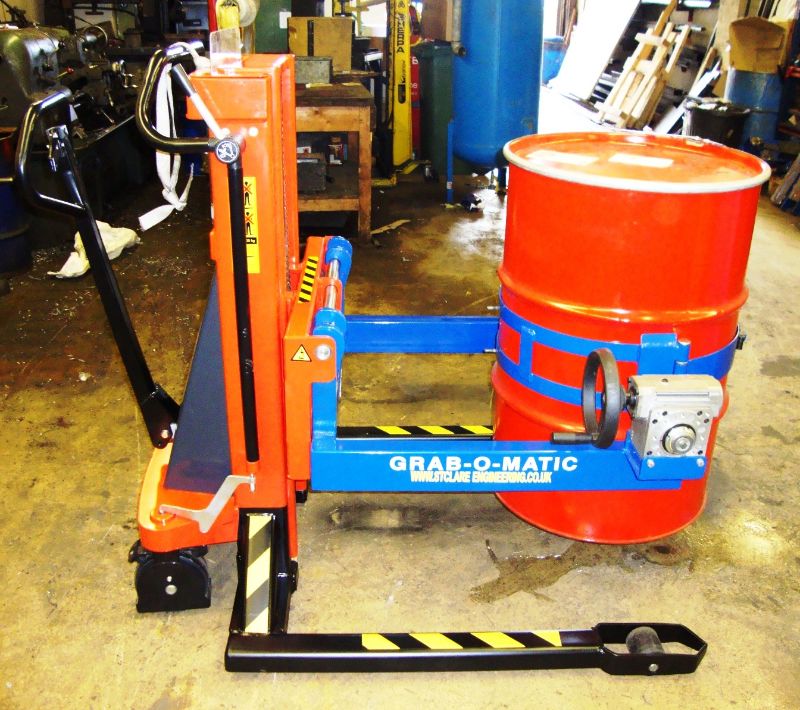

SC22 with Drum Reducer
Various sized drums can be used when fitted with drum reduction attachments

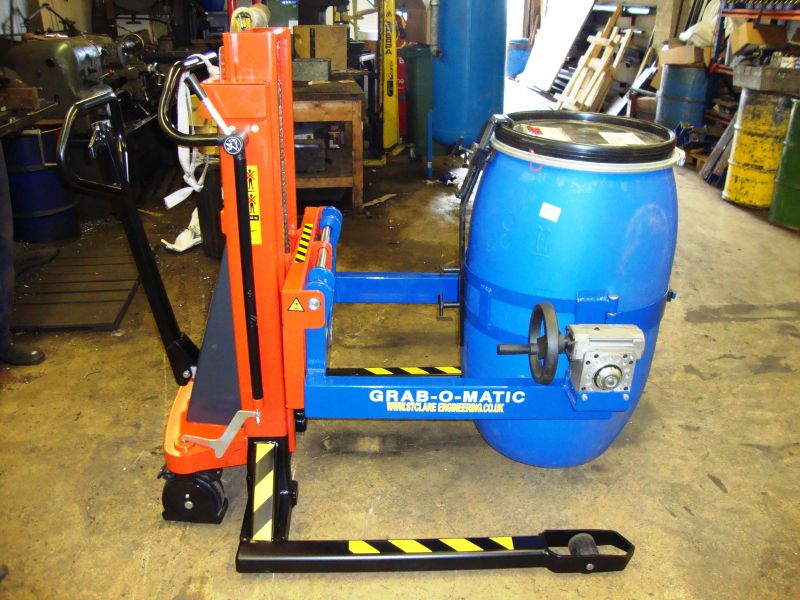

SC22 Plastic Mauser Drum Rotator
Open or closed top plastic drums can be dispensed

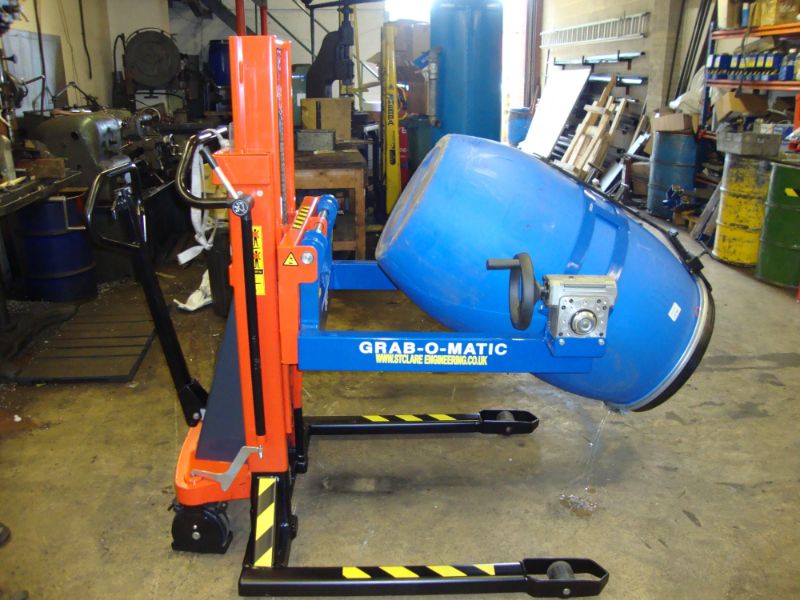

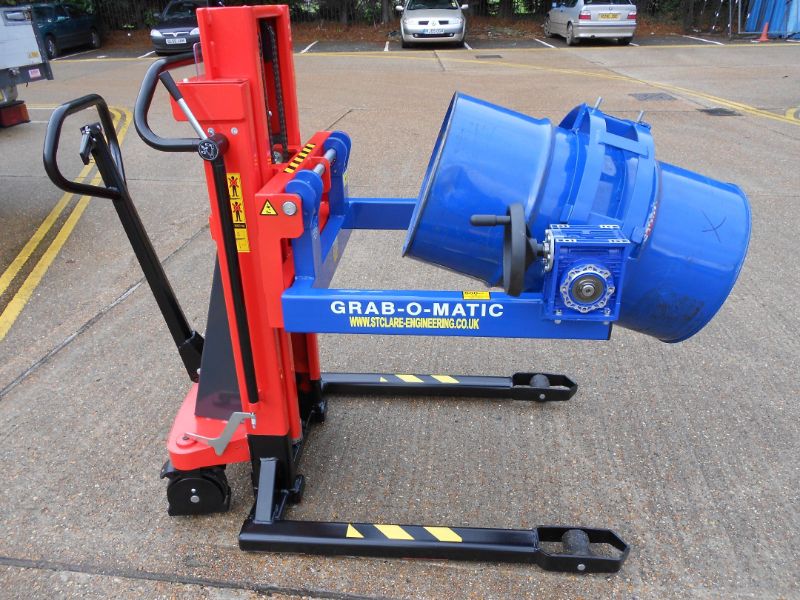

QR-SC10-Mauser DrumTipped
The safety adaptor (p)) must be used for plastic drums
