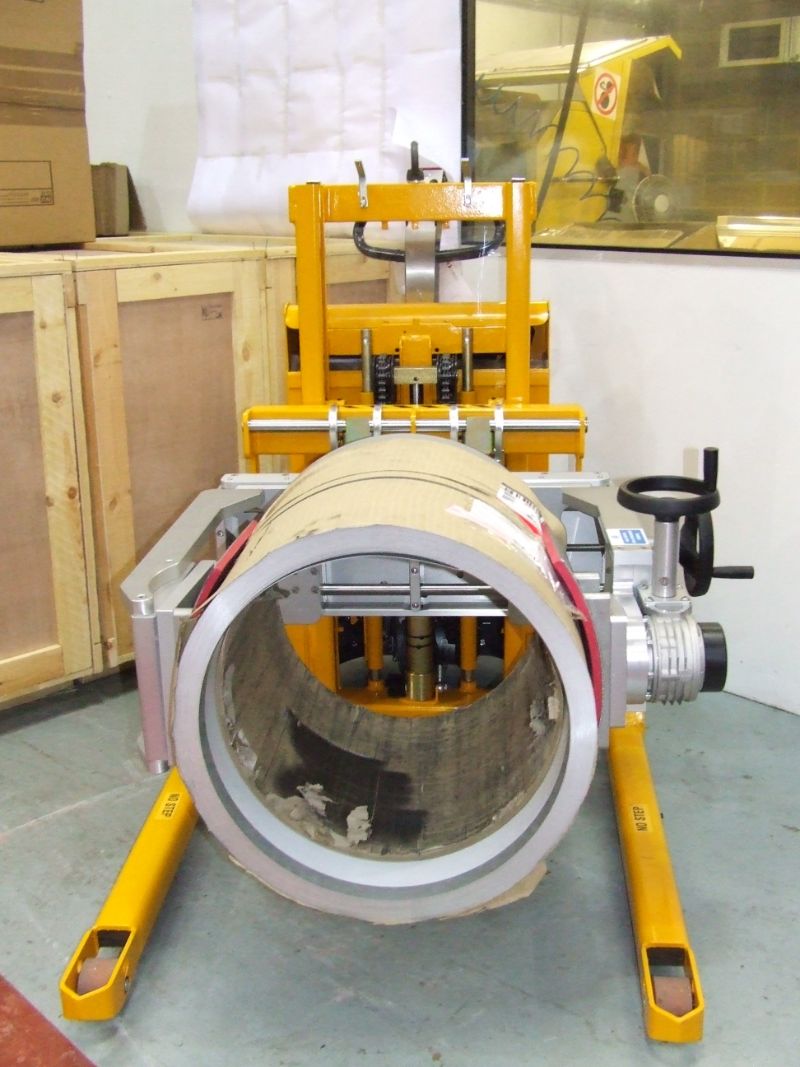

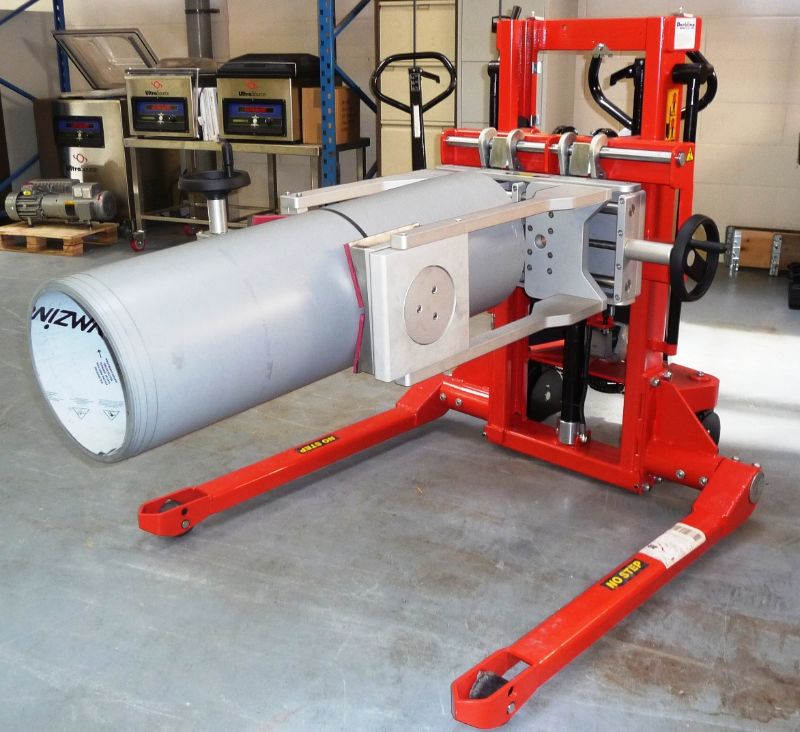

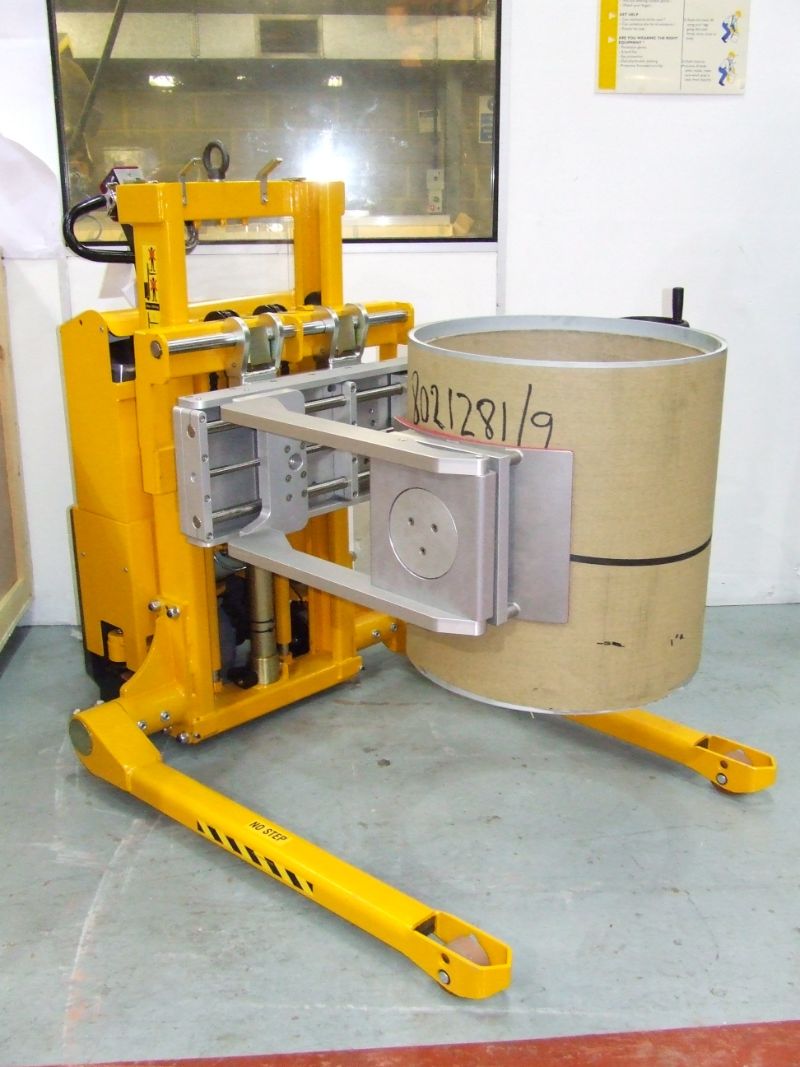

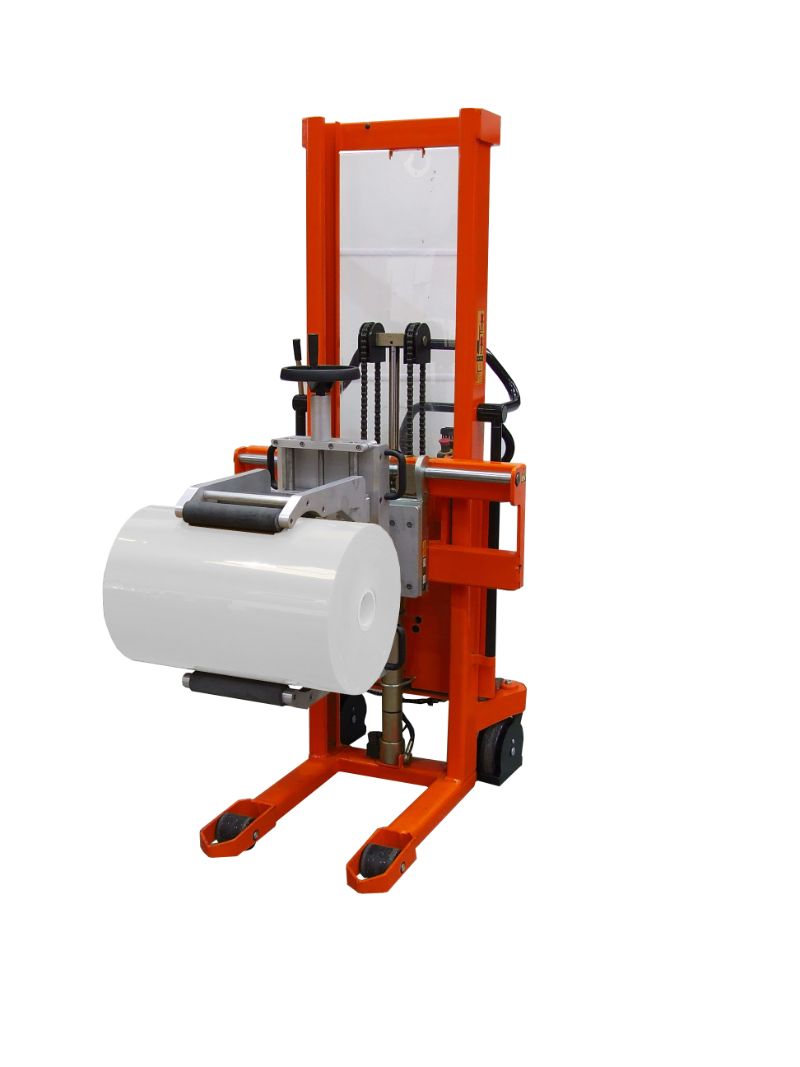

The reels can be gripped on the outside diameter by a rubber faced clamping mechanism. Once gripped the reel can be rotated from the vertical plane to horizontal or vice versa through 360 degrees.
The attachment allows various diameter reels to be loaded or unloaded from racks, reel machines, trolleys and pallets.
Standard Features
– Available as manual or gearbox rotation
– Suitable for various diameter reels
– Constructed mainly from anodized aluminium and stainless steel
Technical Specification
The Reel Rotator attachments are built specifically to order to suit various reel weights, lengths and diameters. The range will suit reels from lightweight 25kg reels up to 250kg.
All attachments can be fitted to our range of heavy duty stackers with special quick release carriages, or to a carriage on your own stacker truck.
Power rotator models also available for connection to our range of power lift/drive stacker trucks, please ask for more details.
